E-1 Machine model XTX32: 24 ft x 32 ft.

Trim height above deck 17 feet. Deck height 4 feet.


“East Garden 3-phase 208V Wye power: twin 45 kva transformers (208V hot-to-hot or 120V hot-to-neutral). Main breaker before each transformer is 40 amp 480V 3-phase. The lower cabinets are Cam-Lok all female: red (X), black (Y), blue (Z), white (neutral), green (ground).

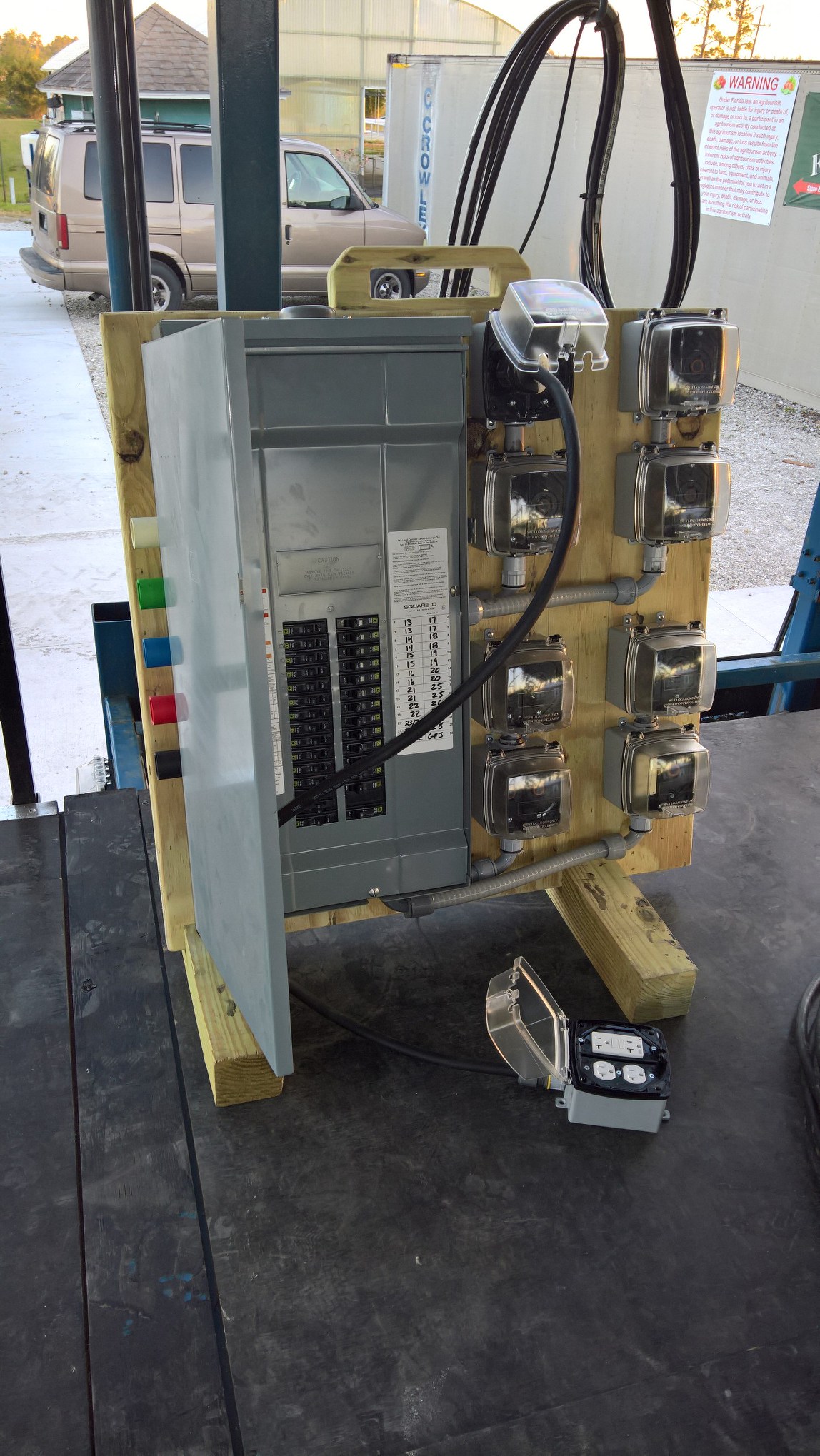

"Power Distribution  Panel #1"
